CityDock T1
Integrated parking & charging system for e-scooters, e-bikes and electric mopeds.
The T1 gives riders a place to park and charge in one system. Riders lock their own scooter to the T1's metal bars with their own cable while it charges – no app required.
Built for the spots where people actually stop: in front of malls, restaurants, hotels, and cafés, wherever a rider needs to park and charge for the length of their visit.
Request the T1 for your location
S P E C I F I C A T I O N S
Dimensions
- Length
- 2 m
- Width
- 20 cm
Charging
- Voltage
- 42V & 48V, for e-scooters and electric mopeds
- Protection
- Automatic circuit breakers against overload & short-circuit
- Operating range
- 0°C to 40°C, to protect the battery cells while charging
- 30% charge
- ~20 minutes
- 60% charge
- ~35 minutes
- Full charge
- ~2.5 hours
Structure & Materials
- Frame
- 3mm low-carbon steel
- Finish
- Electrostatic powder coating
I N S T A L L A T I O N
Always use specialized personnel and accredited tools.
1. Every CityDock station is anchored to the ground with 6 anchor bolts.
2. A Type C pneumatic hammer can be used on concrete surfaces.
3. For asphalt mounting, epoxy resin and anchors are used.
4. Docks ship on Euro pallets, each station individually packaged.
5. An accredited CityDock team can handle installation at your location.

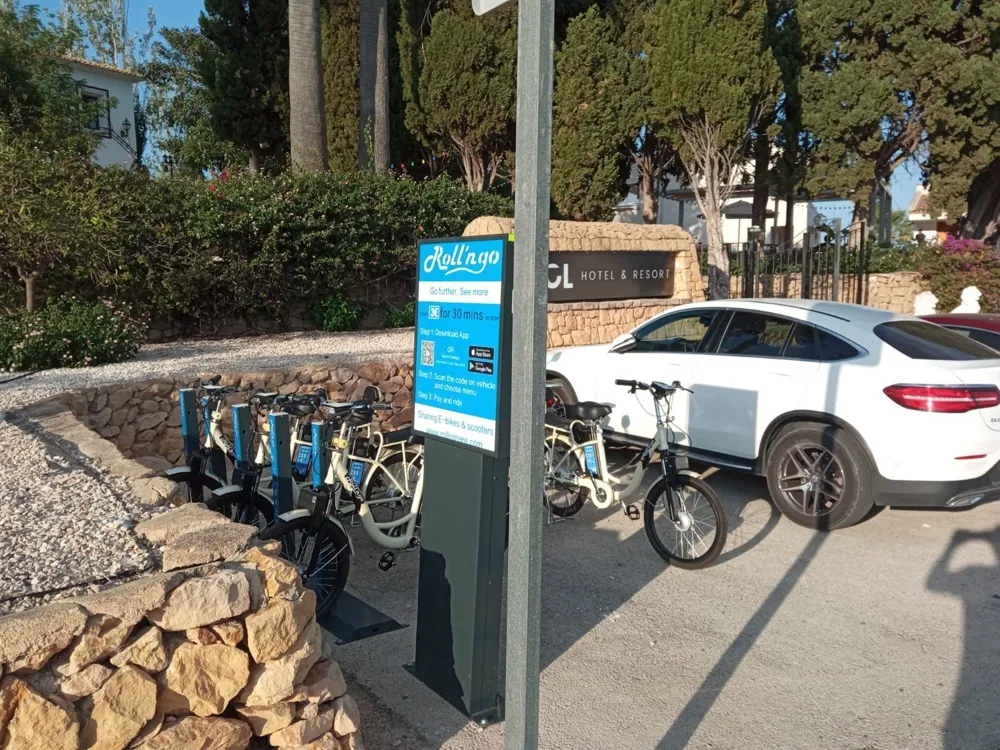

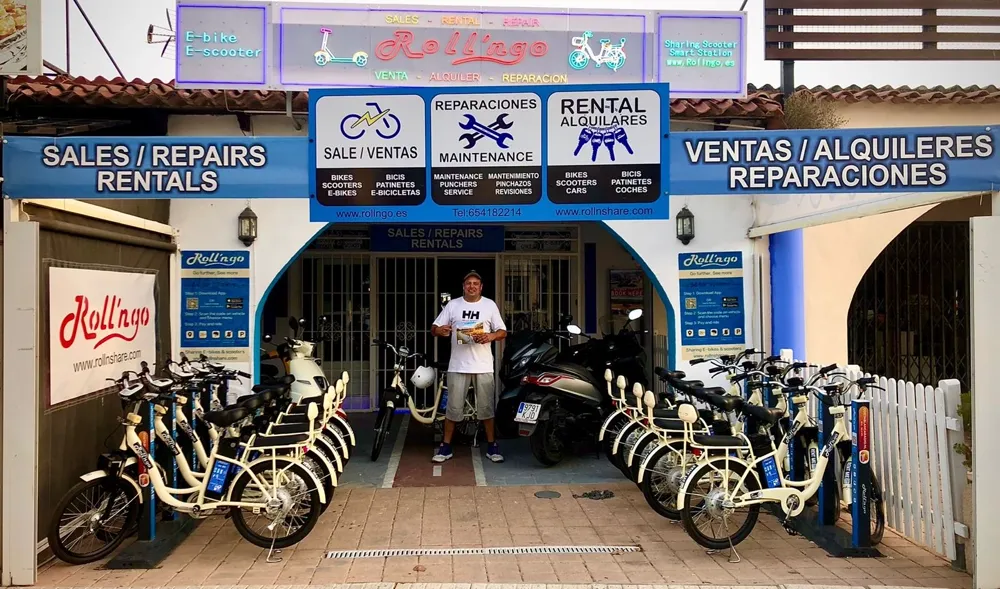

G A L L E R Y
